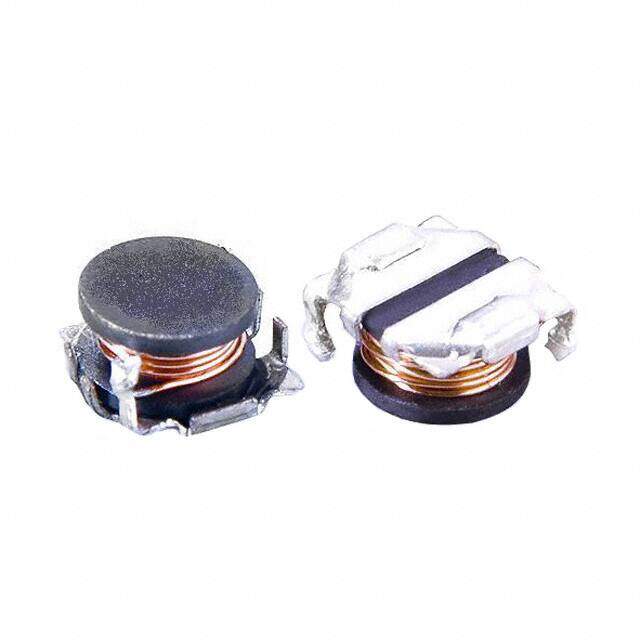

SCH53-470 image
Favorite
SCH53-470 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 47UH 700MA 770 MOHM
PDF
/
Inventory: 5720
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SCH53
Size / Dimension 0.236Lx0.213W 6.00mmx5.40mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 700mA
Shielding Unshielded
Current Rating 530mA
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 770mOhm Max
Inductance Frequency - Test 1kHz
Current - Saturation 530mA

Dimensions

Height 3.2004mm
Height Seated (Max) 0.126 3.20mm
Length 5.9944mm
Width 5.4102mm

Compliance

RoHS Status ROHS3 Compliant
