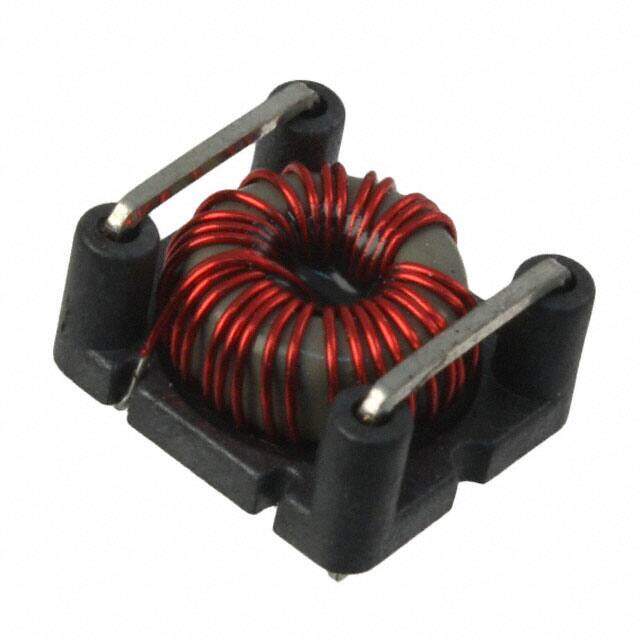

LLST-47
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LLST Nonstandard 0.475Lx0.420W 12.07mmx10.67mm 47muH
PDF
/
Inventory: 6797
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Nickel Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2002
Series LLST
Size / Dimension 0.475Lx0.420W 12.07mmx10.67mm
Tolerance ±15%
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 11.17mm
Construction Rectangular
Current Rating 1.45A
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 120mOhm Max
Max DC Current 1.45A
Frequency - Self Resonant 10MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 1A
Case/Size Code 4842
Dimensions
Height 7.37mm
Height Seated (Max) 0.290 7.37mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
