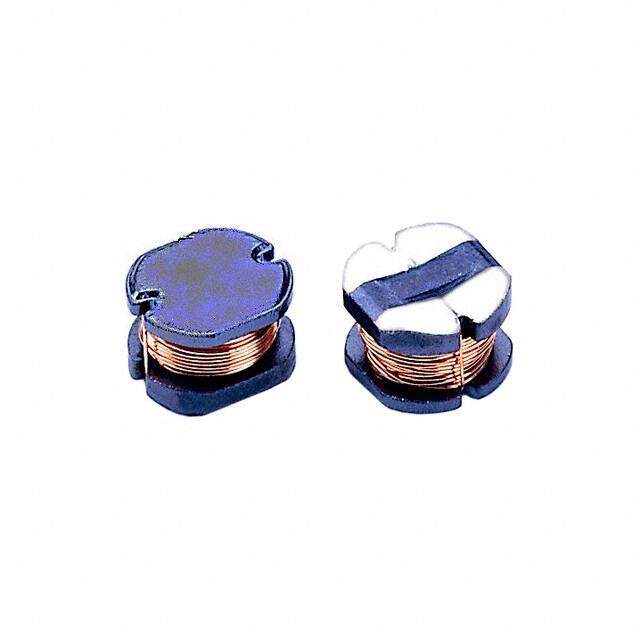

SC31-101
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 Fixed Inductor -40C~125C 1kHz 3.4Ohm Max 100muH
PDF
/
Inventory: 3720
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Current Rating (Amps) 250mA
Shielding Unshielded
Current Rating 100mA
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 3.4Ohm Max
Inductance Frequency - Test 1kHz
Current - Saturation 100mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.150Lx0.130W 3.80mmx3.30mm
Series SC31
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height 1.8034mm
Height Seated (Max) 0.071 1.80mm
Length 3.81mm
Width 3.302mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

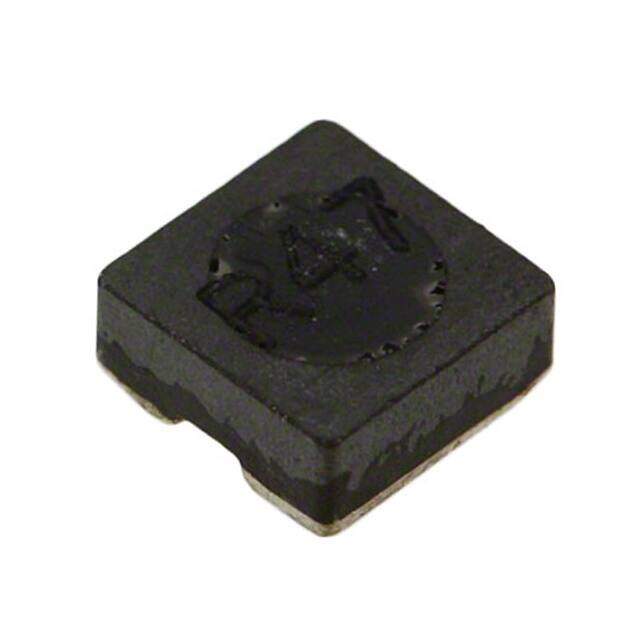

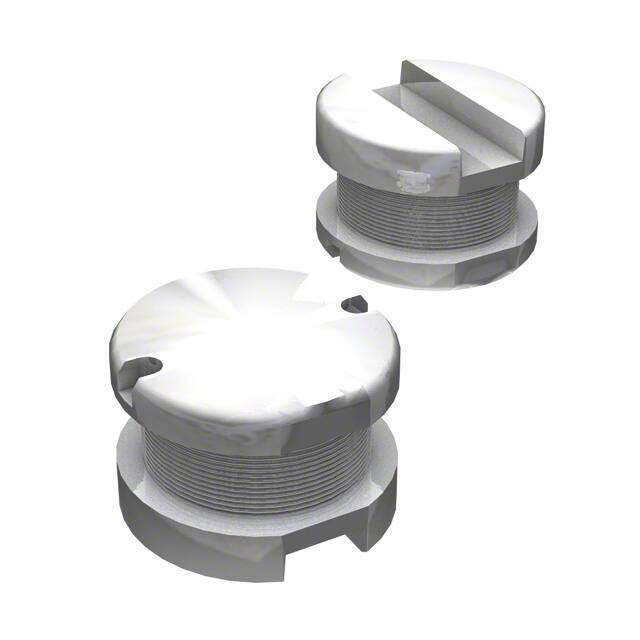

Alternative Model
