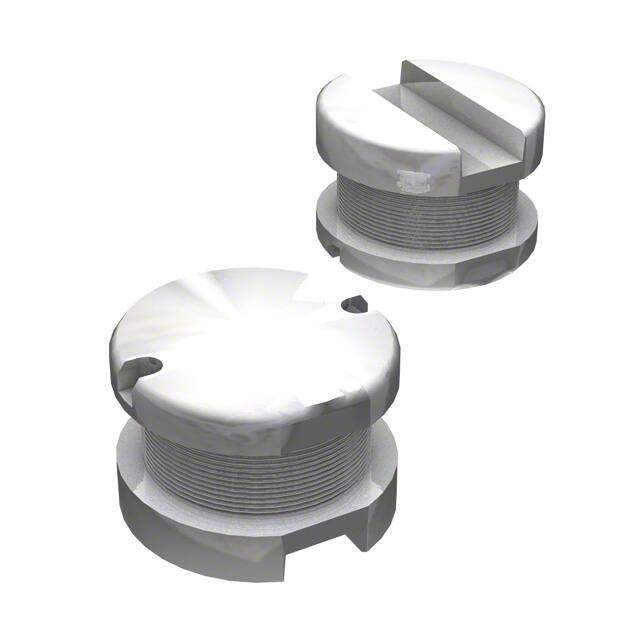

SDR0603-101KL image
Favorite
SDR0603-101KL image
Favorite

SDR0603-101KL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDR0603 Nonstandard 0.228Lx0.228W 5.80mmx5.80mm 100muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
≥10 USD $0.41272
≥100 USD $0.378048
≥500 USD $0.343728
≥1000 USD $0.305888
Inventory: 1568
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR0603
Size / Dimension 0.228Lx0.228W 5.80mmx5.80mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Current Rating 380mA
Military Standard Not
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 950mOhm Max
Max DC Current 380mA
Frequency - Self Resonant 10MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 28 @ 796kHz
Current - Saturation 660mA
Q Factor 28
Inductance Tolerance 10%
DC Current 380mA
RMS Current (Irms) 380mA

Dimensions

Diameter 5.8mm
Height 3.9mm
Height Seated (Max) 0.154 3.90mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
