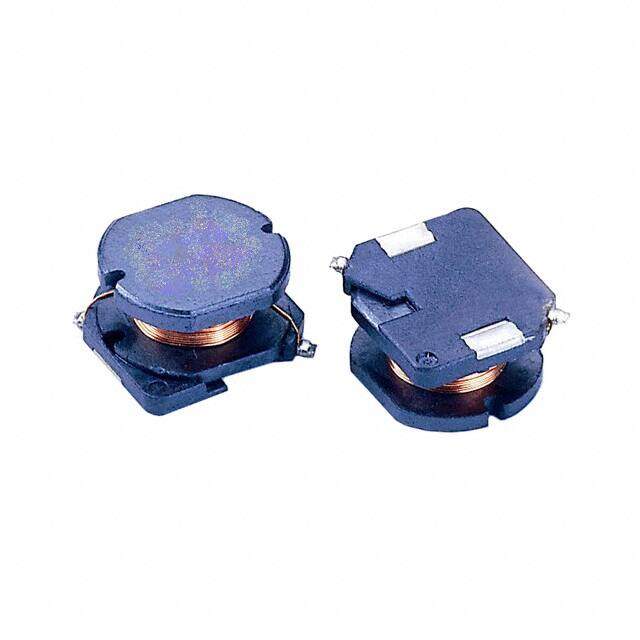

SC105B-560
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Obsolete 2009 fixed air core inductor -40C~125C 2.52MHz 250mOhm Max 56muH
PDF
/
Inventory: 8903
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.8044mm
Length 10.8966mm
Height Seated (Max) 0.236 6.00mm
Height 5.9944mm
Technical
Current - Saturation 1.17A
Inductance Frequency - Test 2.52MHz
DC Resistance (DCR) 250mOhm Max
Test Frequency 2.52MHz
Inductance 56μH
Current Rating 1.17A
Shielding Unshielded
Current Rating (Amps) 1.45A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.429Lx0.386W 10.90mmx9.80mm
Series SC105B
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
