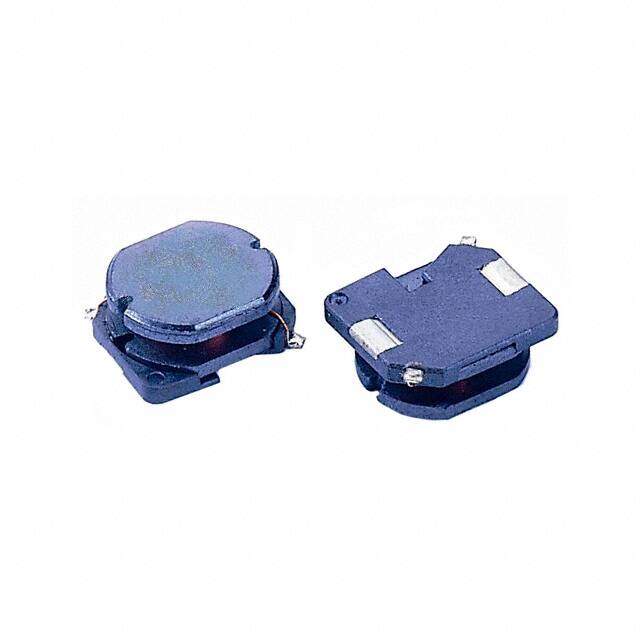

SC104B-271 image
Favorite
SC104B-271 image
Favorite

SC104B-271

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 1kHz 949mOhm Max 270muH
PDF
/
Inventory: 6737
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 9.8044mm
Length 10.8966mm
Height Seated (Max) 0.189 4.80mm
Height 4.8006mm

Technical

Current - Saturation 450mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 949mOhm Max
Test Frequency 1kHz
Inductance 270μH
Current Rating 450mA
Shielding Unshielded
Current Rating (Amps) 740mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.429Lx0.386W 10.90mmx9.80mm
Series SC104B
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
