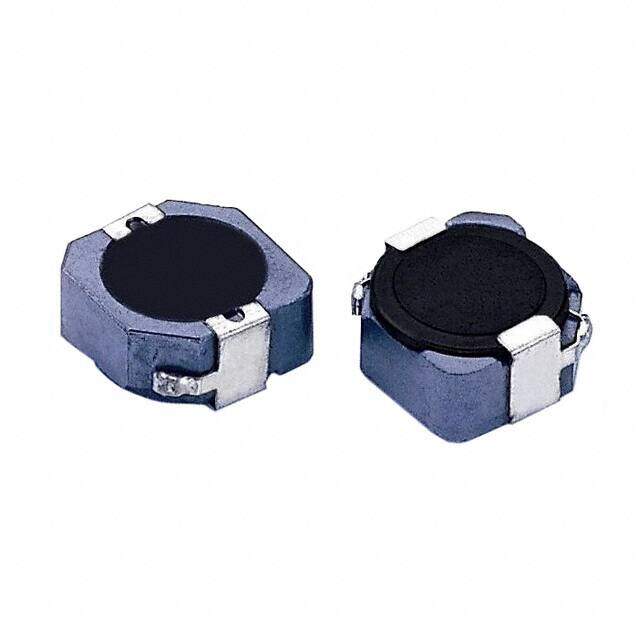

SCRH105RY-271
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Surface Mount Fixed Inductor -40C~125C 100kHz 672mOhm Max 270muH
PDF
/
Inventory: 3235
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10.3124mm
Length 10.4902mm
Height Seated (Max) 0.201 5.10mm
Height 5.1054mm
Technical
Current - Saturation 840mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 672mOhm Max
Test Frequency 100kHz
Inductance 270μH
Current Rating 840mA
Shielding Shielded
Current Rating (Amps) 850mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Series SCRH105RY
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
