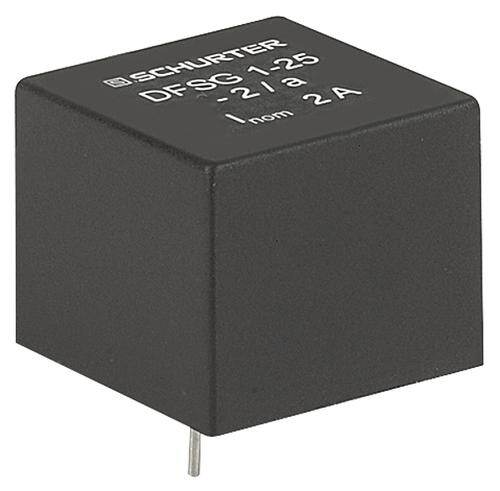

DFSG-33-0001
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal - Corner Terminals
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DFSG Radial Horizontal - Corner Terminals 1.299Lx1.299W 33.00mmx33.00mm
PDF
/
Buying Options
Total Price: USD $9.46
Unit Price: USD $9.46
≥1 USD $9.46
≥10 USD $8.00096
≥100 USD $6.83672
≥500 USD $5.963778
≥1000 USD $5.382124
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal - Corner Terminals
Terminal Shape WIRE
Weight 86.000008g
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -25°C~100°C
Packaging Bulk
Published 2013
Series DFSG
Size / Dimension 1.299Lx1.299W 33.00mmx33.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 33mm
Voltage - Rated AC 440V
Lead Pitch 20mm
Max Current Rating 5A
DC Resistance (DCR) 70mOhm
Max DC Current 5A
Lead/Base Style Pin
Inductor Type GENERAL PURPOSE INDUCTOR
Number of Lines 1
Self Resonant Frequency 30MHz
Dimensions
Height 25.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
