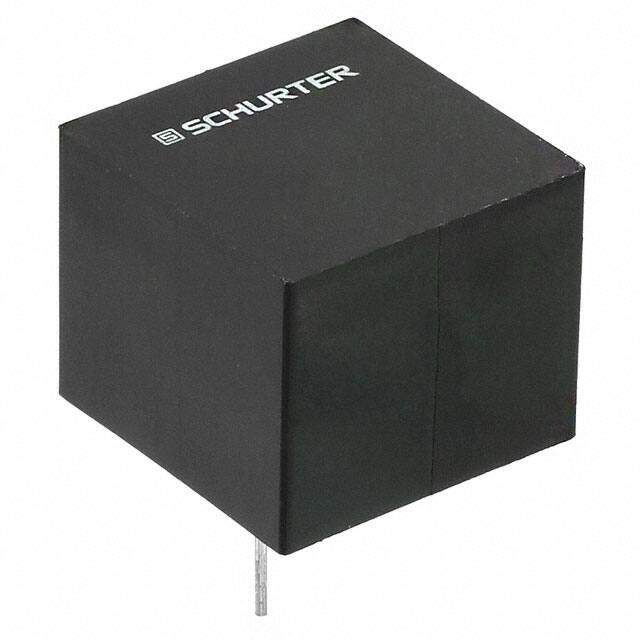

DFSG-20-0002
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal - Corner Terminals
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DFSG Radial Horizontal - Corner Terminals 0.709Lx0.709W 18.00mmx18.00mm
PDF
/
Buying Options
Total Price: USD $5.63
Unit Price: USD $5.632
≥1 USD $5.632
≥10 USD $4.76872
≥100 USD $4.2372
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal - Corner Terminals
Terminal Shape WIRE
Weight 14.999988g
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -25°C~100°C
Packaging Bulk
Published 2013
Series DFSG
Size / Dimension 0.709Lx0.709W 18.00mmx18.00mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 18mm
Current Rating 1.5A
Military Standard Not
Voltage - Rated AC 440V
Lead Pitch 12.5mm
Lead Diameter 600 μm
Max Current Rating 1.5A
DC Resistance (DCR) 450mOhm
Max DC Current 1.5A
Lead/Base Style Radial
Inductor Type GENERAL PURPOSE INDUCTOR
DC Current 1.5A
Number of Lines 1
Self Resonant Frequency 90MHz
Dimensions
Height 15mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

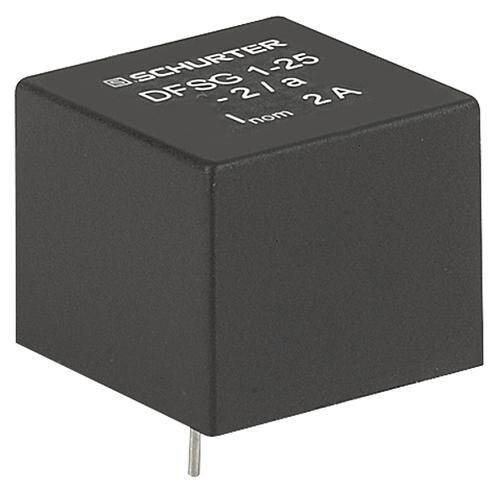

Alternative Model
