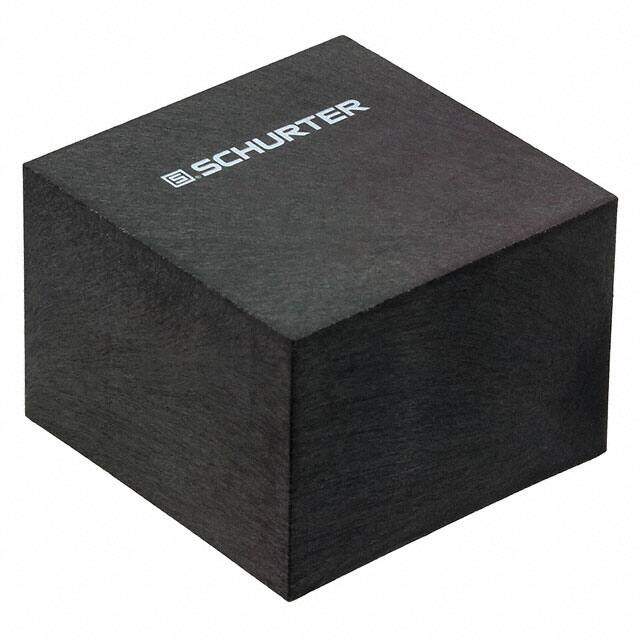

DFSG-30-0002
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal - Corner Terminals
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DFSG Radial Horizontal - Corner Terminals 1.181Lx1.181W 30.00mmx30.00mm
PDF
/
Buying Options
Total Price: USD $6.53
Unit Price: USD $6.526142
≥1 USD $6.526142
≥10 USD $6.156737
≥100 USD $5.808245
≥500 USD $5.479474
≥1000 USD $5.16932
Inventory: 3540
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 22mm
Technical
Self Resonant Frequency 30MHz
Number of Lines 1
DC Current 6A
Inductor Type GENERAL PURPOSE INDUCTOR
Lead/Base Style Radial
Max DC Current 6A
DC Resistance (DCR) 60mOhm
Max Current Rating 6A
Lead Diameter 800 μm
Lead Pitch 20mm
Voltage - Rated AC 440V
Military Standard Not
Current Rating 6A
Depth 30mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
JESD-609 Code e3
Size / Dimension 1.181Lx1.181W 30.00mmx30.00mm
Series DFSG
Published 2013
Packaging Bulk
Operating Temperature -25°C~100°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Weight 56.699046g
Terminal Shape WIRE
Package / Case Radial, Horizontal - Corner Terminals
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 20 Weeks
