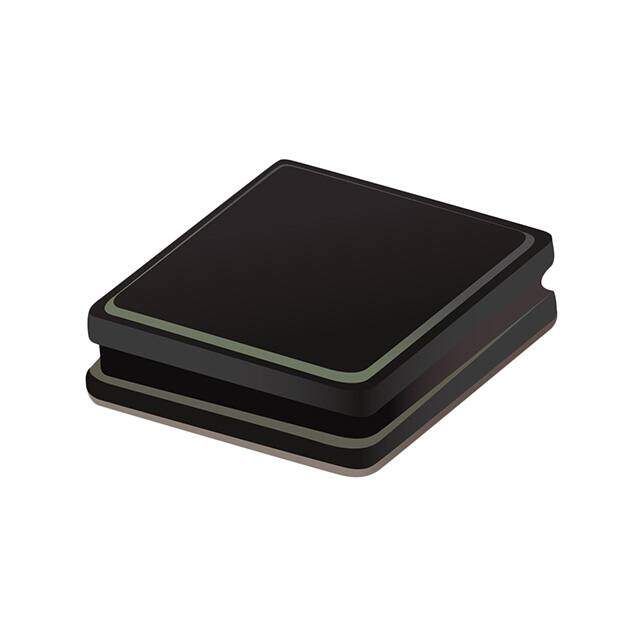

CIG22H2R2MAE image
Favorite
CIG22H2R2MAE image
Favorite
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description CIG22H_MAE 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.03
Unit Price: USD $0.02755
≥1 USD $0.02755
≥10 USD $0.0228
≥100 USD $0.02185
≥500 USD $0.0209
≥1000 USD $0.01995
Inventory: 3003
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 2.0066mm
Length 2.4892mm
Height Seated (Max) 0.039 1.00mm

Technical

Current - Saturation 1.1A
Inductance Frequency - Test 1MHz
DC Resistance (DCR) 138mOhm
Test Frequency 1MHz
Inductance 2.2μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 1.2A
Shielding Shielded
Current Rating (Amps) 1.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series CIG22H_MAE
Published 2013
Packaging Digi-Reel?
Operating Temperature -40°C~125°C

Physical

Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks

Alternative Model
