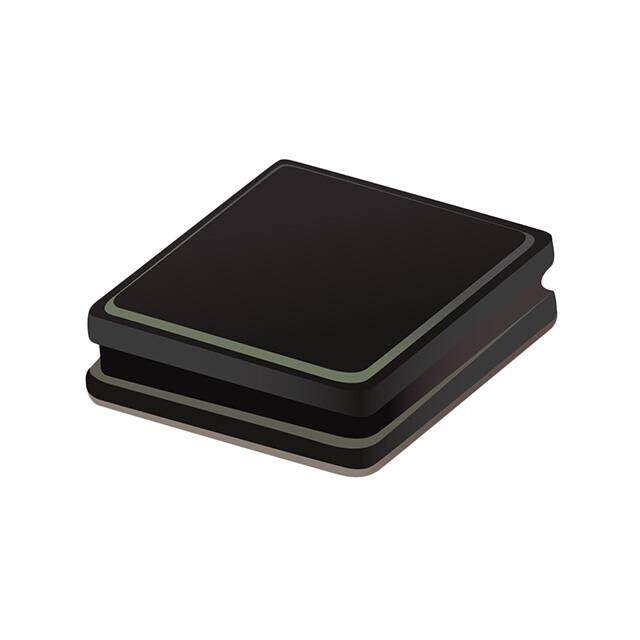

SRN2508A-2R2M
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN2508A 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.24728
≥100 USD $0.228096
≥500 USD $0.209264
≥1000 USD $0.184536
≥3000 USD $0.178781
Inventory: 28
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Inductance Tolerance 20%
Current - Saturation 1.4A
Inductance Frequency - Test 1MHz
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 140MHz
DC Resistance (DCR) 210mOhm
Inductance 2.2μH
Shielding Semi-Shielded
Current Rating (Amps) 950mA
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series SRN2508A
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
