PL9318NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

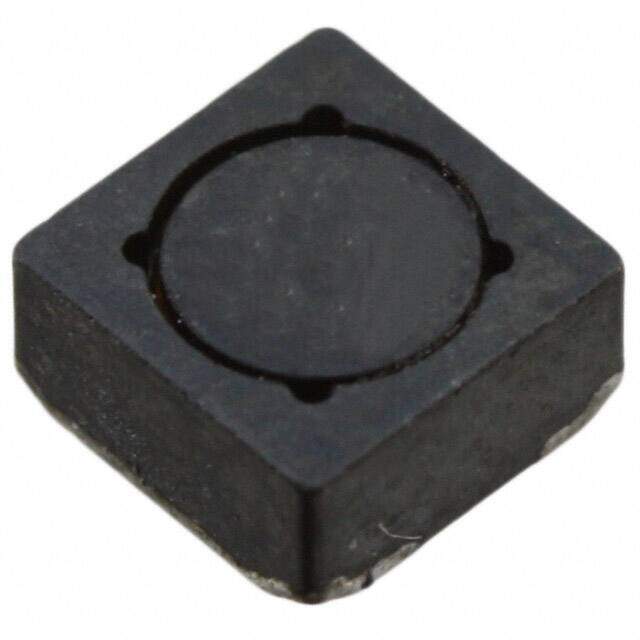

RoHS Compliant Active Tube Surface Mount Fixed Inductor -55C~130C 1.133Ohm Max 330muH ±20%
PDF
/
Inventory: 8435
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Current - Saturation 700mA
DC Resistance (DCR) 1.133Ohm Max
Inductance 330μH
Shielding Shielded
Current Rating (Amps) 600mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.410Lx0.410W 10.41mmx10.41mm
Series PL93XX
Packaging Tube
Operating Temperature -55°C~130°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
