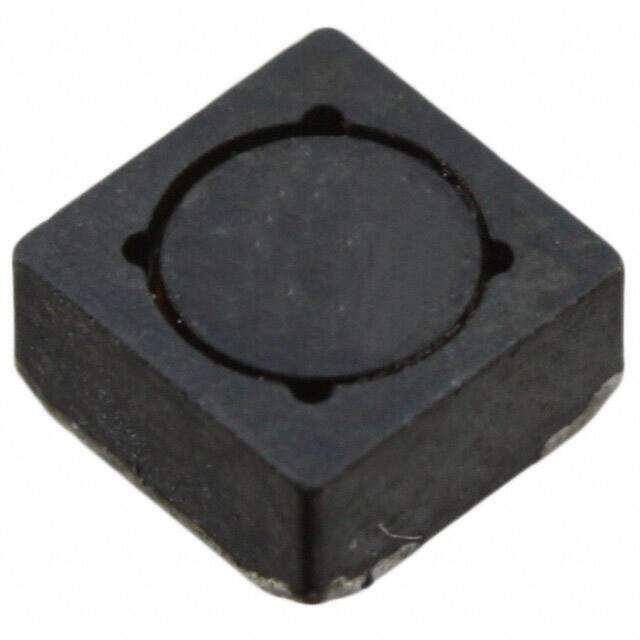

SD25-331-R image
Favorite
SD25-331-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SD Nonstandard 0.205Lx0.205W 5.20mmx5.20mm 330muH
PDF
/
Inventory: 8975
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 5.1816mm
Length 5.1816mm
Height Seated (Max) 0.098 2.50mm
Height 2.5mm

Technical

Current - Saturation 219mA
Inductance Frequency - Test 100kHz
Max DC Current 219mA
DC Resistance (DCR) 2.07Ohm
Test Frequency 100kHz
Inductance 330μH
Current Rating 359mA
Shielding Shielded
Current Rating (Amps) 359mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series SD
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Material - Core Ferrite
Weight 453.59237mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
