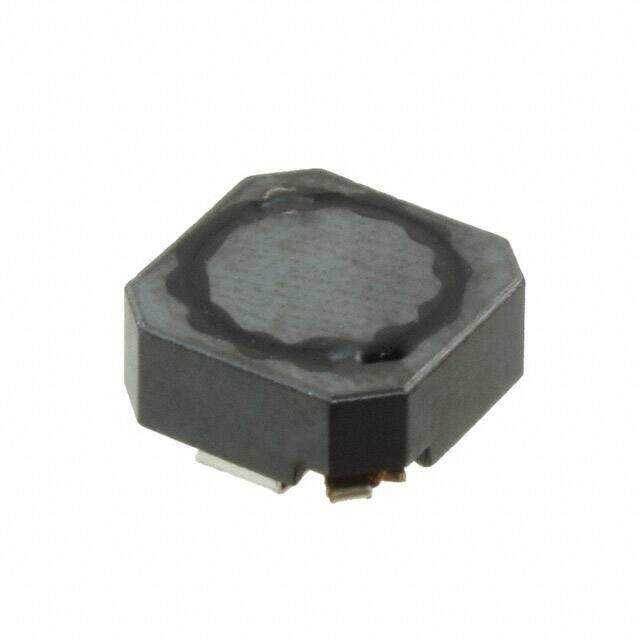

PL9232 image
Favorite
PL9232 image
Favorite

PL9232

PulseR
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Inductor Power Shielded Wirewound 1000uH/890uH 20% 400mA 2.85Ohm DCR
PDF
/
Inventory: 8875
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -55°C~130°C
Packaging Tube
Published 2007
Series PL92XX
Size / Dimension 0.413Lx0.413W 10.50mmx10.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 2.85Ohm
Max Operating Temperature 130°C
Min Operating Temperature -55°C
Current Rating (Amps) 400mA
Shielding Shielded
Depth 10.5mm
Military Standard Not
Inductance 1mH
DC Resistance (DCR) 2.85Ohm Max
Max DC Current 400mA
Current - Saturation 410mA
DC Current 400mA

Dimensions

Height 5.1mm
Height Seated (Max) 0.201 5.10mm
Length 10.5mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
