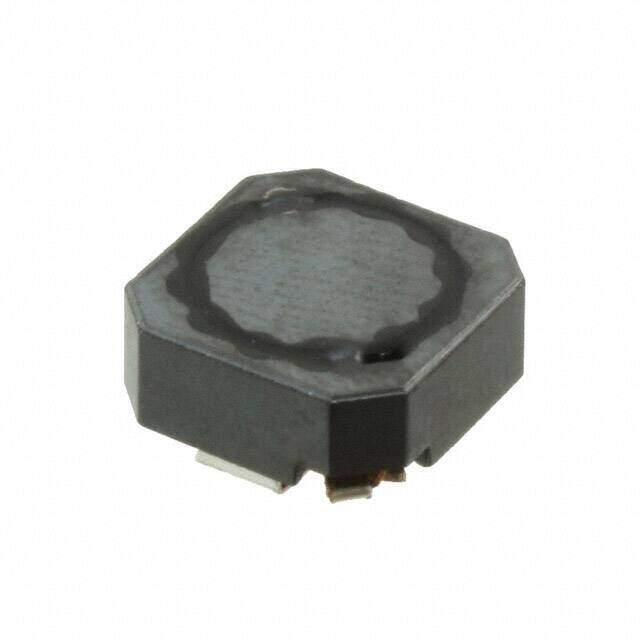

B82464G4105M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 1MH 340MA 2.2 OHM SMD
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.452
≥1 USD $1.452
≥10 USD $1.23288
≥100 USD $1.136256
≥500 USD $1.015344
≥1000 USD $0.84612
≥3000 USD $0.821955
Inventory: 1142
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.189 4.80mm
Technical
Current - Saturation 350mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.8MHz
DC Resistance (DCR) 2.2Ohm Max
Inductance 1mH
Shielding Shielded
Current Rating (Amps) 340mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.409Lx0.409W 10.40mmx10.40mm
Series B82464G4
Published 2017
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
