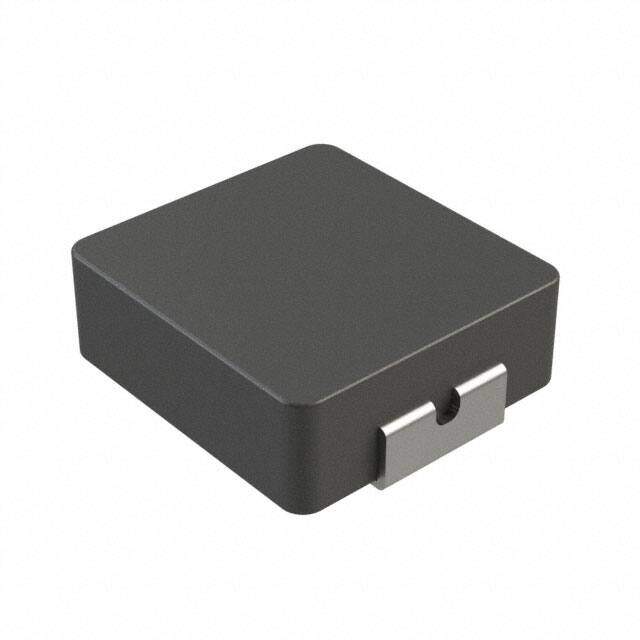

PM4547.221NLT image
Favorite
PM4547.221NLT image
Favorite

PM4547.221NLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description INDUCTOR 3.8X3.4X1.5MM 0.2UH
PDF
/
Inventory: 9817
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.059 1.50mm

Technical

Current - Saturation 10.8A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 17mOhm Max
Inductance 220nH
Shielding Unshielded
Current Rating (Amps) 7A
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.138Lx0.126W 3.50mmx3.20mm
Series PM4547
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 17 Weeks

Alternative Model

HCM1A0503-R22-R

HCM1A0503-R22-R

Eaton - Electronics Division

Recommended For You

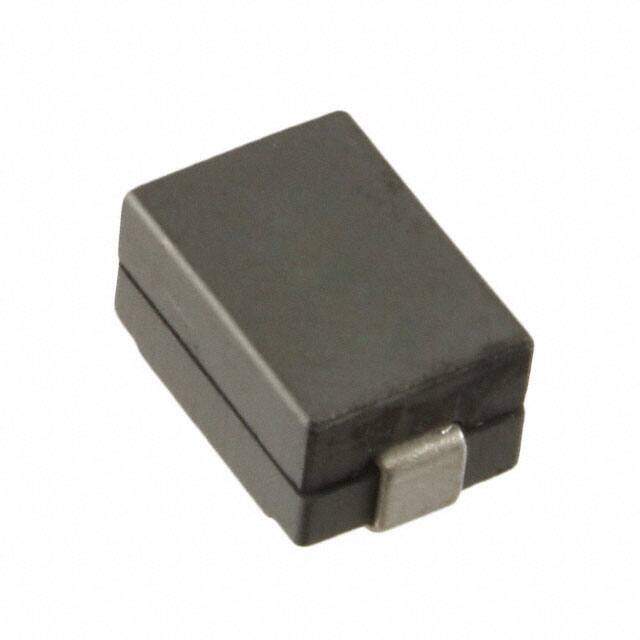

FP1005R3-R22-R
