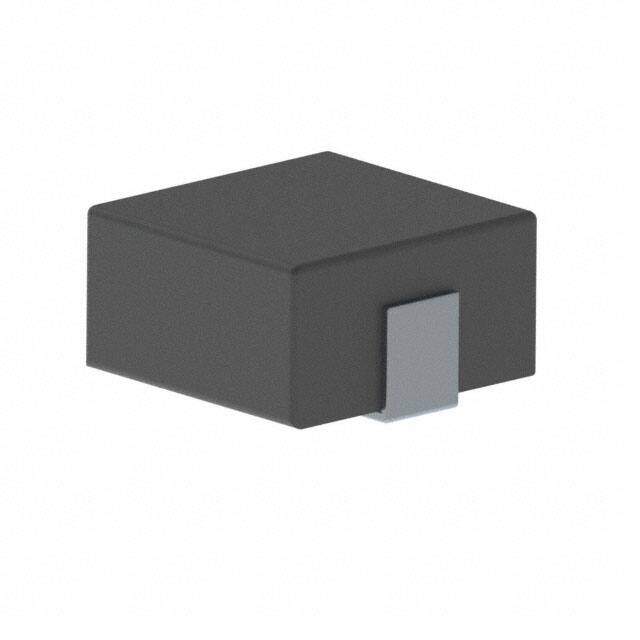

HCM1A0503-R22-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXD IND 220NH 15.8A 2.3MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.9008
≥1 USD $1.9008
≥10 USD $1.61304
≥100 USD $1.486144
≥500 USD $1.328096
≥1000 USD $1.106776
≥3000 USD $1.075149
Inventory: 1124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series HCM1A
Size / Dimension 0.203Lx0.201W 5.15mmx5.10mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 15.8A
Shielding Shielded
Inductance 220nH
DC Resistance (DCR) 2.3mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 24A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
