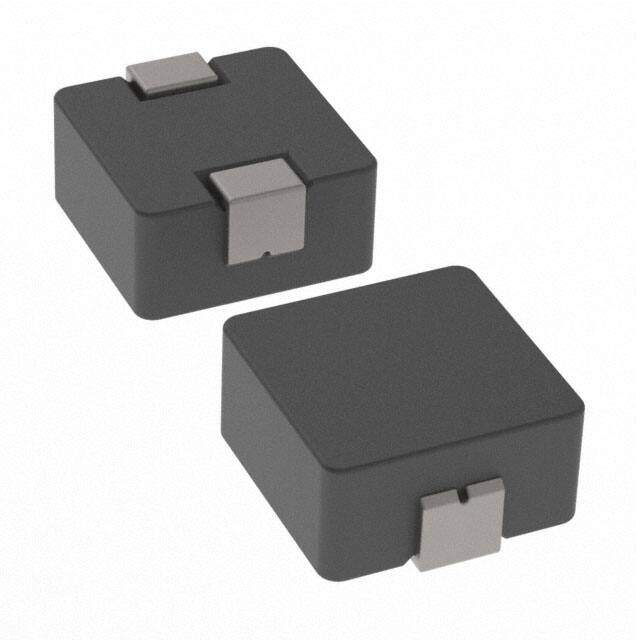

PM4343.333NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR 14.0X12.8X6.5MM 33.0UH
PDF
/
Inventory: 8537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PM4343.XXXNLT
Size / Dimension 0.551Lx0.504W 14.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 8A
Shielding Shielded
Inductance 33μH
DC Resistance (DCR) 58mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 11A
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
