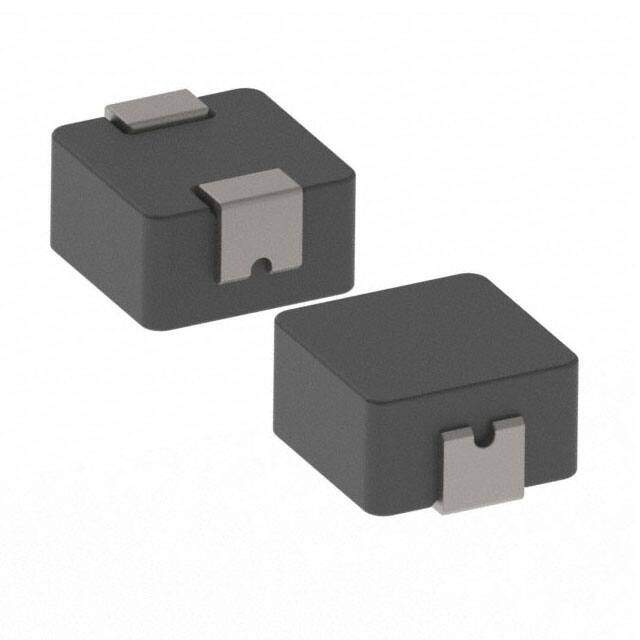

PM4340.153NLT image
Favorite
PM4340.153NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description INDUCTOR 6.0X5.4X3.0MM 15.0UH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.66704
≥100 USD $0.606496
≥500 USD $0.57024
≥1000 USD $0.473176
≥3000 USD $0.436762
Inventory: 1176
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.118 3.00mm

Technical

Current - Saturation 2.6A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 190mOhm Max
Inductance 15μH
Shielding Shielded
Current Rating (Amps) 2.1A
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.236Lx0.213W 6.00mmx5.40mm
Series PM4340.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
