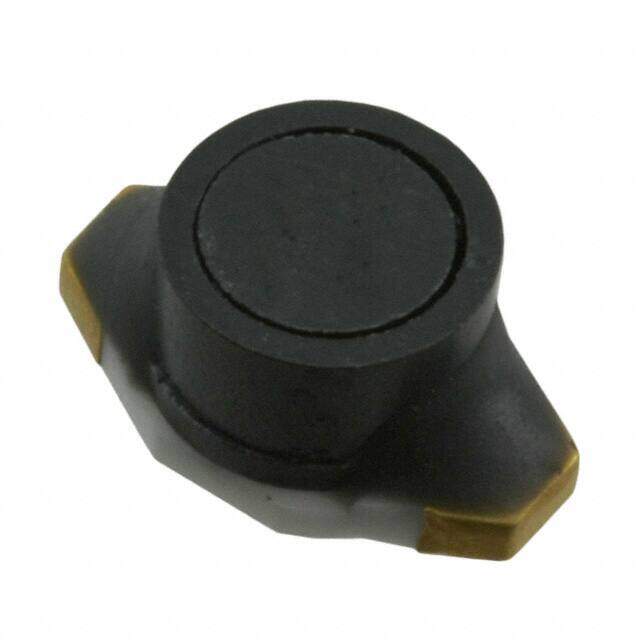

SRR6603-150ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR6603 Nonstandard 0.260Lx0.173W 6.60mmx4.40mm 15muH
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.00232
≥100 USD $0.910976
≥500 USD $0.856416
≥1000 USD $0.7106
≥3000 USD $0.655917
Inventory: 1083
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SRR6603
Size / Dimension 0.260Lx0.173W 6.60mmx4.40mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Copper/Silver (Sn/Cu/Ag)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 4.4mm
Current Rating 800mA
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 90mOhm Max
Max DC Current 800mA
Frequency - Self Resonant 33MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 40 @ 100kHz
Quality Factor-Min (at L-nom) 40
Current - Saturation 310mA
Q Factor 40
Inductance Tolerance 20%
RMS Current (Irms) 800mA
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
