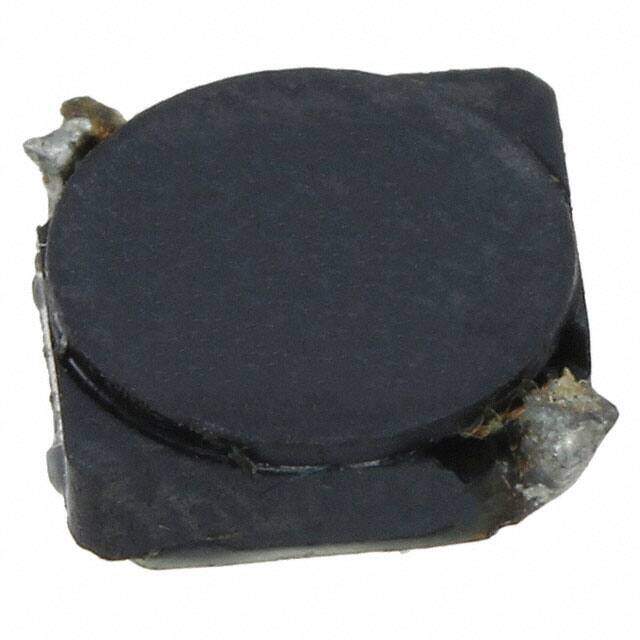

PG0087.474NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Active WRAPAROUND Fixed Inductor -40C~130C 4.3MHz 6.24Ohm Max 470muH
PDF
/
Inventory: 4216
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 2.0066mm
Technical
Rated Current-Max 0.28A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 4.3MHz
DC Resistance (DCR) 6.24Ohm Max
Test Frequency 0.1MHz
Inductance 470μH
Current Rating 150mA
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.244Lx0.244W 6.20mmx6.20mm
Series PG0087NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
