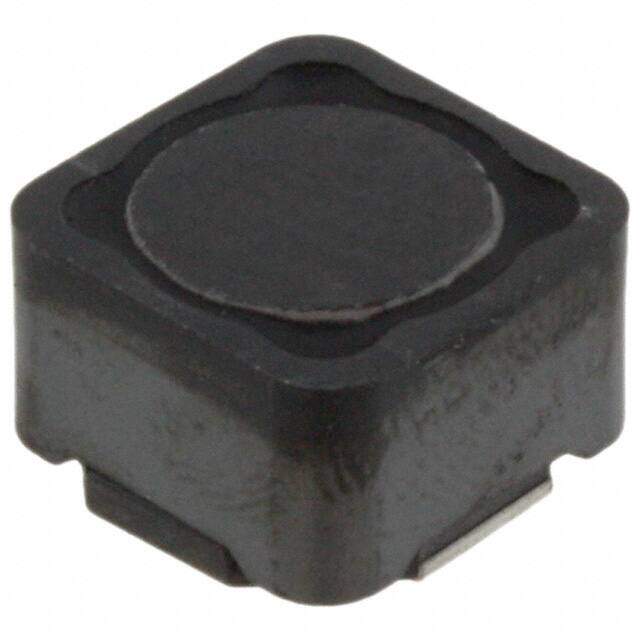

DRA127-100-R image
Favorite
DRA127-100-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description DRA Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 10muH
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.15776
≥100 USD $1.988096
≥500 USD $1.77672
≥1000 USD $1.4806
Inventory: 943
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 12.5mm
Length 12.5mm
Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Self Resonant Frequency 100kHz
RMS Current (Irms) 6.02A
Inductance Tolerance 20%
Current - Saturation 11.2A
Inductance Frequency - Test 100kHz
Max DC Current 6.02A
DC Resistance (DCR) 17mOhm
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 6.02A
Depth 12.5mm
Shielding Shielded
Current Rating (Amps) 6.02A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 165°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series DRA
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~165°C

Physical

Core Material Ferrite
Weight 453.59237mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
