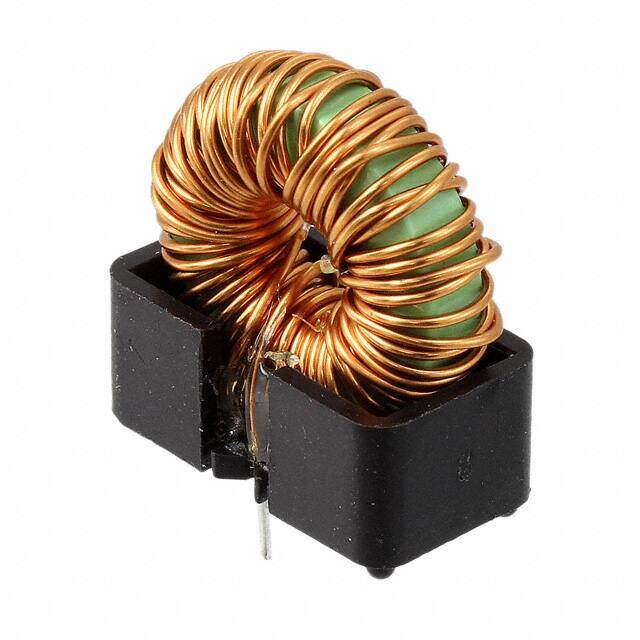

PE-54044NL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.830Lx0.450W 21.09mmx11.43mm 77muH ±20%
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
≥10 USD $2.69808
≥100 USD $2.463648
≥500 USD $2.111842
≥1000 USD $1.935842
≥3000 USD $1.877154
Inventory: 1169
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.950 24.13mm
Height 24.13mm
Technical
Special Feature SIMPLE SWITCHER
DC Current 3A
Case/Size Code 8345
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 3A
DC Resistance (DCR) 80mOhm
Test Frequency 20kHz
Inductance 77μH
Lead Diameter 0.635 mm
Lead Length 3.31mm
Lead Pitch 7.62mm
Military Standard Not
Current Rating 3A
Depth 11.56mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Resistance 80mOhm
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.830Lx0.450W 21.09mmx11.43mm
Published 2008
Packaging Tray
Operating Temperature -40°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WIRE
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
