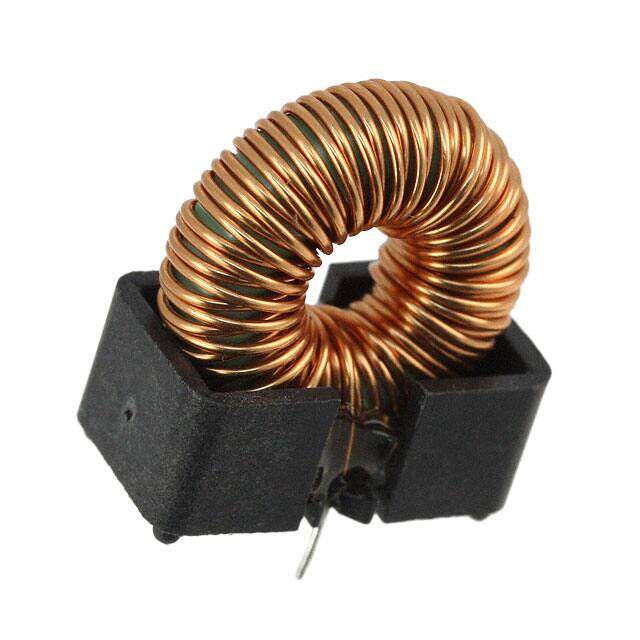

PE-54038NLT
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.830Lx0.450W 21.09mmx11.43mm 77muH ±20%
PDF
/
Inventory: 2798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.950 24.13mm
Height 24.13mm
Technical
Special Feature SIMPLE SWITCHER
DC Current 2.7A
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 90mOhm
Test Frequency 20kHz
Inductance 77μH
Lead Pitch 7.62mm
Military Standard Not
Current Rating 2.7A
Depth 11.56mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 90mOhm
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.830Lx0.450W 21.09mmx11.43mm
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WIRE
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
