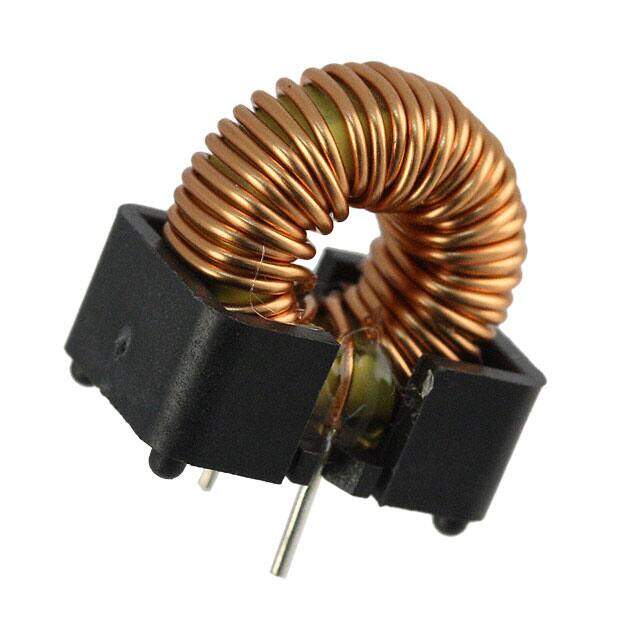

PE-54041NL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.830Lx0.450W 21.09mmx11.43mm 25muH ±20%
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.41208
≥100 USD $2.202464
≥500 USD $1.88782
≥1000 USD $1.73052
≥3000 USD $1.678054
Inventory: 332
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.700 17.78mm
Height 17.78mm
Technical
Special Feature SIMPLE SWITCHER
DC Current 3A
Case/Size Code 6545
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 3A
DC Resistance (DCR) 40mOhm
Test Frequency 20kHz
Inductance 25μH
Lead Diameter 0.711 mm
Lead Length 3.31mm
Lead Pitch 7.62mm
Military Standard Not
Current Rating 3A
Depth 11.43mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.40.00
Resistance 40mOhm
Type Toroidal
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.830Lx0.450W 21.09mmx11.43mm
Published 2008
Packaging Tray
Operating Temperature -40°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WIRE
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
