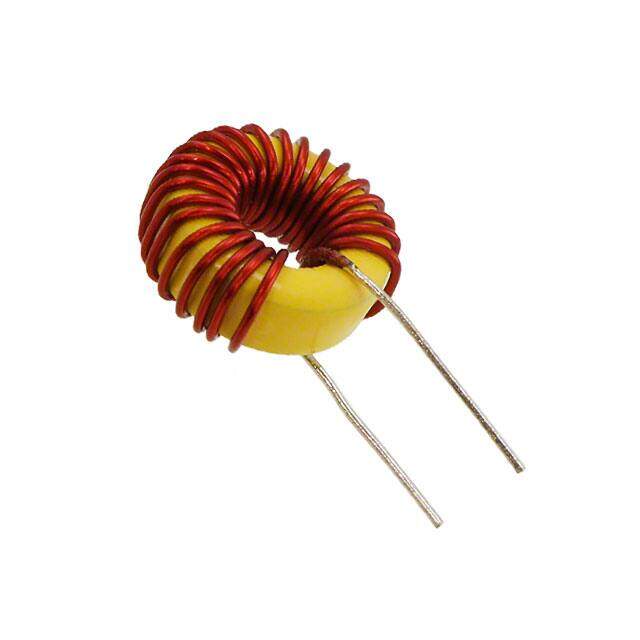

PE-92100NL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.550Diax0.250W 13.97mmx6.35mm 25muH ±20%
PDF
/
Buying Options
Total Price: USD $2.18
Unit Price: USD $2.1824
≥1 USD $2.1824
≥10 USD $1.85592
≥100 USD $1.71072
≥500 USD $1.52856
≥1000 USD $1.273906
≥3000 USD $1.237482
Inventory: 1124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Number of Pins 2
Shape/Size Description CYLINDRICAL PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Published 2006
Size / Dimension 0.550Diax0.250W 13.97mmx6.35mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
Resistance 43mOhm
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 6.35mm
Current Rating 2.6A
Military Standard Not
Lead Pitch 4.57mm
Lead Length 9.58mm
Lead Diameter 508 μm
Inductance 25μH
Test Frequency 20kHz
DC Resistance (DCR) 43mOhm Max
Max DC Current 2.6A
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 20%
DC Current 2.6A
RMS Current (Irms) 2.6A
Dimensions
Diameter 13.97mm
Height 16.51mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
