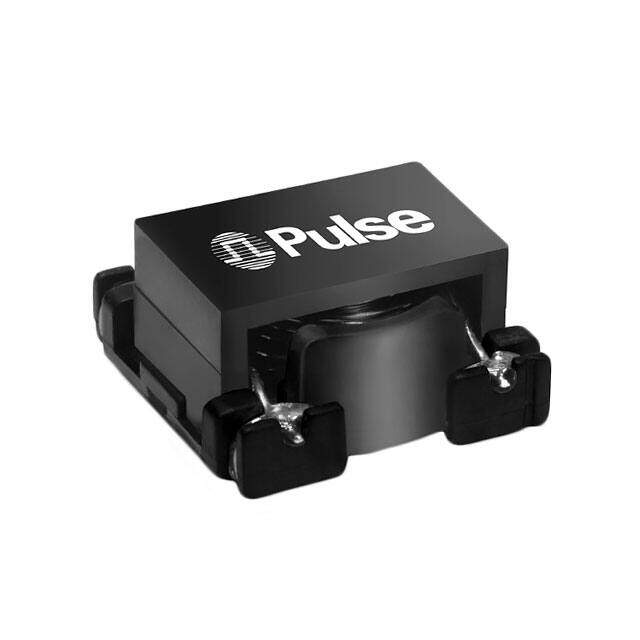

PD0120.152NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active WRAPAROUND fixed air core inductor -40C~125C 3mOhm Max 1.8muH ±10%
PDF
/
Inventory: 5150
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series PD0120NL
Size / Dimension 0.638Lx0.628W 16.20mmx15.95mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Rectangular
Current Rating 14.2A
Inductance 1.8μH
DC Resistance (DCR) 3mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Current - Saturation 24.3A
Case/Size Code 6463
Dimensions
Height 8.2042mm
Height Seated (Max) 0.323 8.20mm
Compliance
RoHS Status RoHS Compliant
