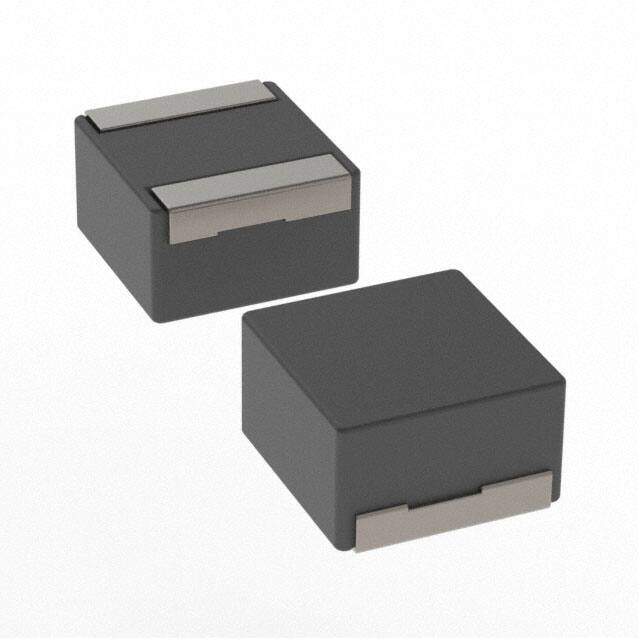

PA4349.333ANLT image
Favorite
PA4349.333ANLT image
Favorite

PA4349.333ANLT

Pulse Electronics Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA4349.XXXANLT Nonstandard 0.925Lx0.866W 23.50mmx22.00mm 33muH
PDF
/
Buying Options
Total Price: USD $5.53
Unit Price: USD $5.5264
≥1 USD $5.5264
≥10 USD $4.4792
≥100 USD $3.98112
Inventory: 439
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series PA4349.XXXANLT
Size / Dimension 0.925Lx0.866W 23.50mmx22.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Molded
Current Rating (Amps) 19A
Shielding Shielded
Number of Functions 1
Inductance 33μH
Test Frequency 0.1MHz
DC Resistance (DCR) 15.4mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 12A
Rated Current-Max 19A
Special Feature STANDARD : TS16949

Dimensions

Height Seated (Max) 0.512 13.00mm

Compliance

RoHS Status RoHS Compliant
Ratings AEC-Q200
