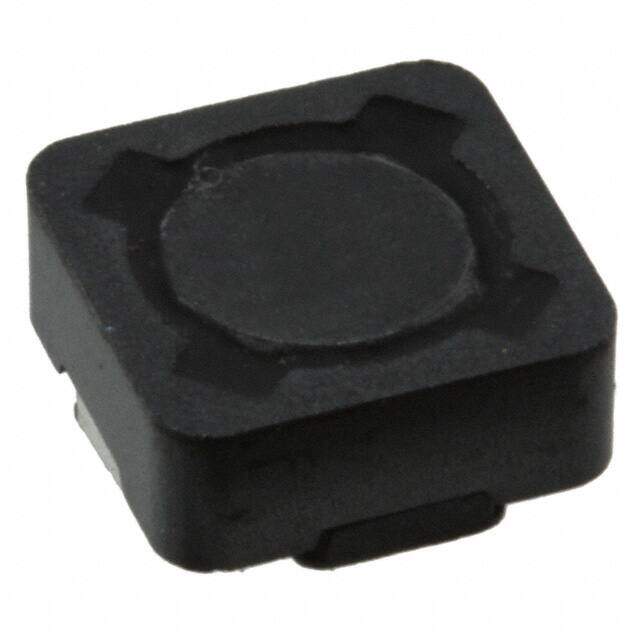

DRA73-330-R image
Favorite
DRA73-330-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description DRA Nonstandard 0.299Lx0.299W 7.60mmx7.60mm 33muH
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $0.95128
≥100 USD $0.865216
≥500 USD $0.813296
≥1000 USD $0.674872
≥3000 USD $0.622934
Inventory: 1111
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Core Material Ferrite

Technical

Operating Temperature -40°C~165°C
Packaging Tape & Reel (TR)
Published 2007
Series DRA
Size / Dimension 0.299Lx0.299W 7.60mmx7.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 165°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.25A
Shielding Shielded
Depth 7.6mm
Current Rating 1.25A
Military Standard Not
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 183mOhm
Current 845mA
Max DC Current 1.35A
Inductance Frequency - Test 100kHz
Current - Saturation 1.35A
Inductance Tolerance 20%
DC Current 1.25A
RMS Current (Irms) 1.25A
Self Resonant Frequency 100kHz

Dimensions

Height 3.55mm
Height Seated (Max) 0.140 3.55mm
Length 7.6mm
Width 7.5946mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
