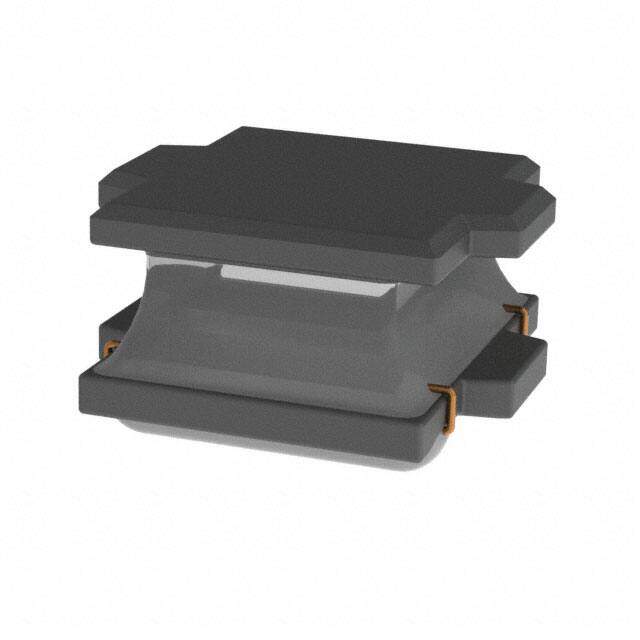

PA4338.821NLT image
Favorite
PA4338.821NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA4338.XXXNLT Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 820nH
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
Inventory: 1119
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.165 4.20mm

Technical

Current - Saturation 13.8A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 8mOhm Max
Inductance 820nH
Shielding Shielded
Current Rating (Amps) 6.3A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Series PA4338.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
