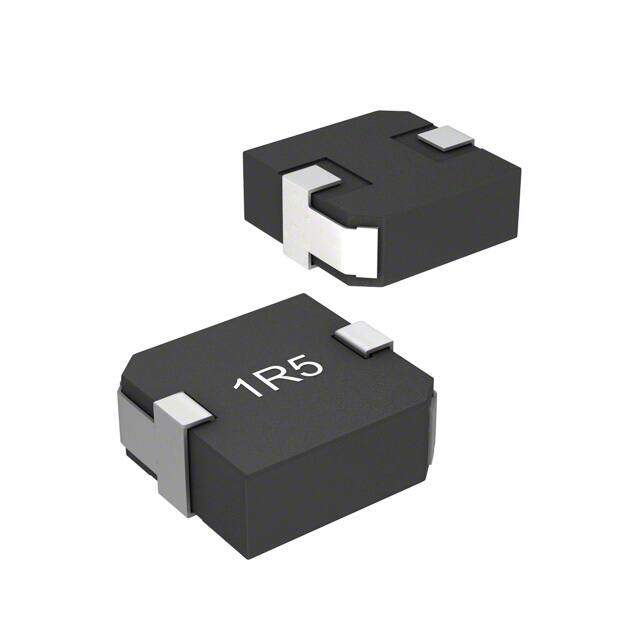

SRP1250-R82M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP1250 Nonstandard 0.547Lx0.531W 13.90mmx13.50mm 820nH
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.23904
≥100 USD $1.141536
≥500 USD $1.020096
≥1000 USD $0.849992
≥3000 USD $0.825757
Inventory: 543
Minimum: 1
-
+
Technical Details
Technical
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 13.5mm
Construction Chip
Current Rating 31A
Inductance 820nH
Test Frequency 100kHz
DC Resistance (DCR) 2.3mOhm Max
Max DC Current 31A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 53A
Case/Size Code 5553
Inductance Tolerance 20%
RMS Current (Irms) 31A
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.547Lx0.531W 13.90mmx13.50mm
Series SRP1250
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Dimensions
Height 5.9mm
Height Seated (Max) 0.232 5.90mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
