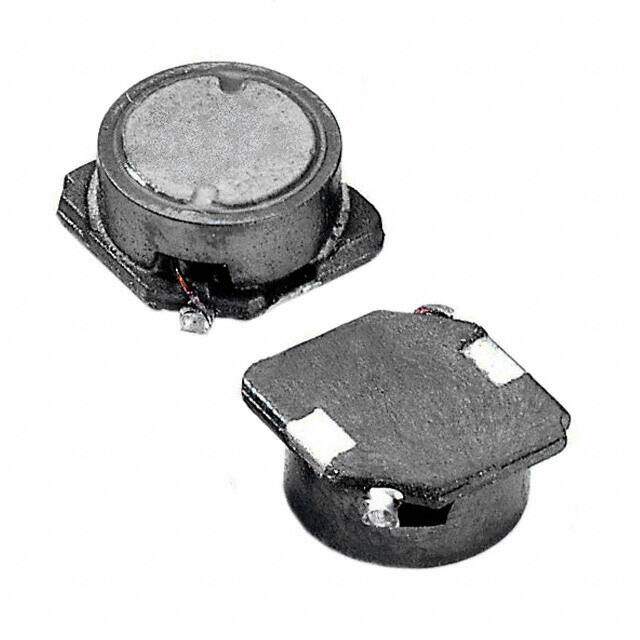

SCB73C-680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active 2009 Tape & Reel (TR) Fixed Inductor -40C~125C 1kHz 520mOhm Max 68muH
PDF
/
Inventory: 4966
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCB73C
Size / Dimension 0.291Lx0.291W 7.40mmx7.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 890mA
Shielding Shielded
Current Rating 890mA
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 520mOhm Max
Inductance Frequency - Test 1kHz
Current - Saturation 500mA
Dimensions
Height Seated (Max) 0.138 3.50mm
Length 7.3914mm
Width 7.3914mm
Compliance
RoHS Status ROHS3 Compliant
