PA3288.221HL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Active WRAPAROUND fixed air core inductor -40C~130C 100kHz 0.29mOhm 220nH
PDF
/
Inventory: 1422
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Series PA3288.XXXHL
Size / Dimension 0.362Lx0.244W 9.20mmx6.20mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 64A
Inductance 220nH
Test Frequency 100kHz
DC Resistance (DCR) 0.29mOhm
Max DC Current 35A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 45A
Case/Size Code 3624
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Compliance
RoHS Status RoHS Compliant

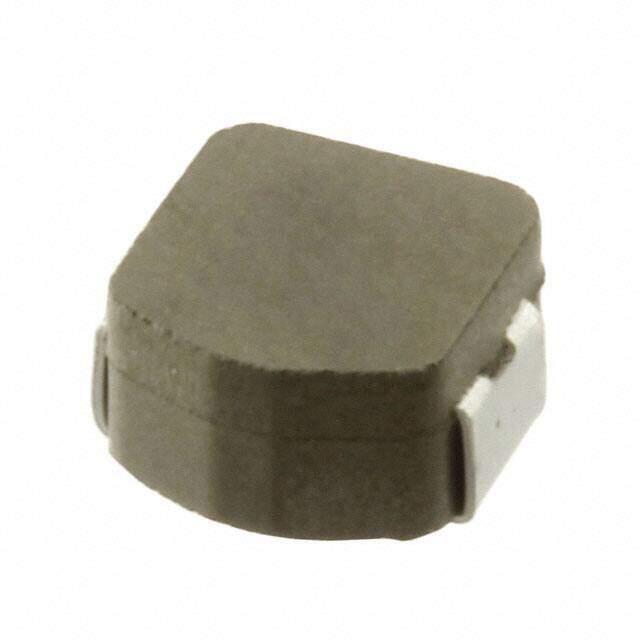

Alternative Model
