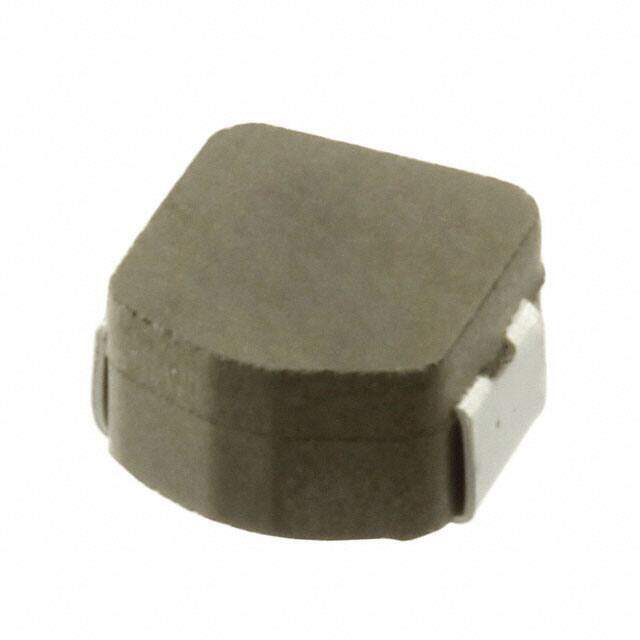

MPLCG0530LR22
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPLCG Nonstandard 0.217Lx0.197W 5.50mmx5.00mm 220nH
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.798658
≥1 USD $0.798658
Inventory: 1113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2007
Series MPLCG
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Inductance 220nH
Test Frequency 100kHz
DC Resistance (DCR) 3.7mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 10.2A
Inductance Tolerance 20%
RMS Current (Irms) 14.1A
Series Resistance 3.7mOhm
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
