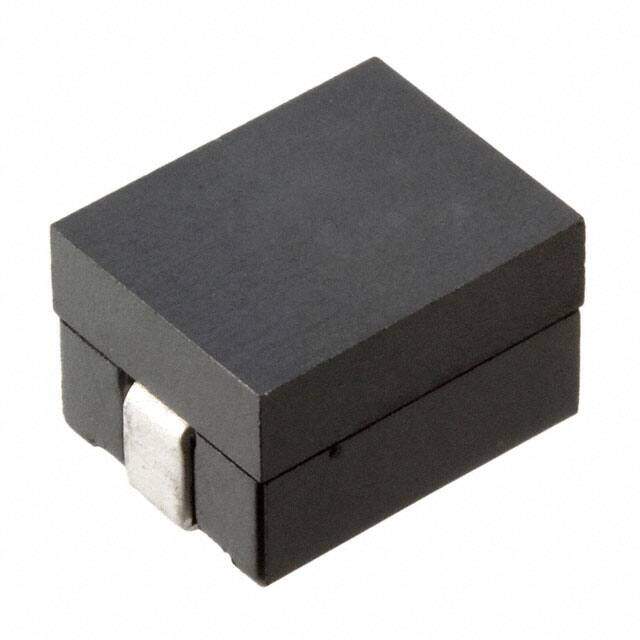

PA1320.221NLT image
Favorite
PA1320.221NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PA1320NL Nonstandard 0.410Lx0.315W 10.41mmx8.00mm 200nH
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.21352
≥100 USD $1.118656
≥500 USD $0.999504
≥1000 USD $0.83292
≥3000 USD $0.809107
Inventory: 1167
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series PA1320NL
Size / Dimension 0.410Lx0.315W 10.41mmx8.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 8mm
Current Rating 40A
Inductance 200nH
DC Resistance (DCR) 0.48mOhm
Max DC Current 40A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 50A

Dimensions

Height 6.5024mm
Height Seated (Max) 0.256 6.50mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
