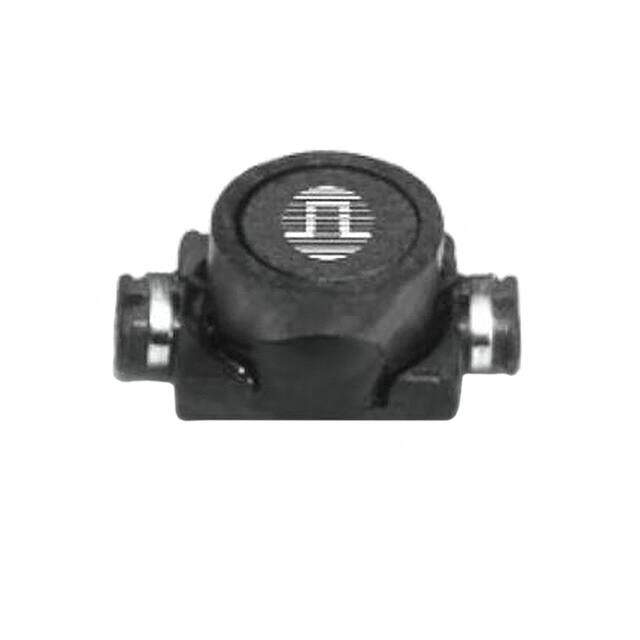

P1174.334NLT image
Favorite
P1174.334NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description P1174NL Nonstandard 0.265Lx0.175W 6.73mmx4.45mm 330muH
PDF
/
Inventory: 2026
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.110 2.79mm
Height 2.794mm

Technical

Special Feature Q MEASURED AT 0.1 MHZ
DC Current 140mA
Quality Factor-Min (at L-nom) 40
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 5MHz
Max DC Current 140mA
DC Resistance (DCR) 1.34Ohm Max
Test Frequency 100kHz
Inductance 330μH
Military Standard Not
Current Rating 140mA
Depth 4.45mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Resistance 1.34Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.265Lx0.175W 6.73mmx4.45mm
Series P1174NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
