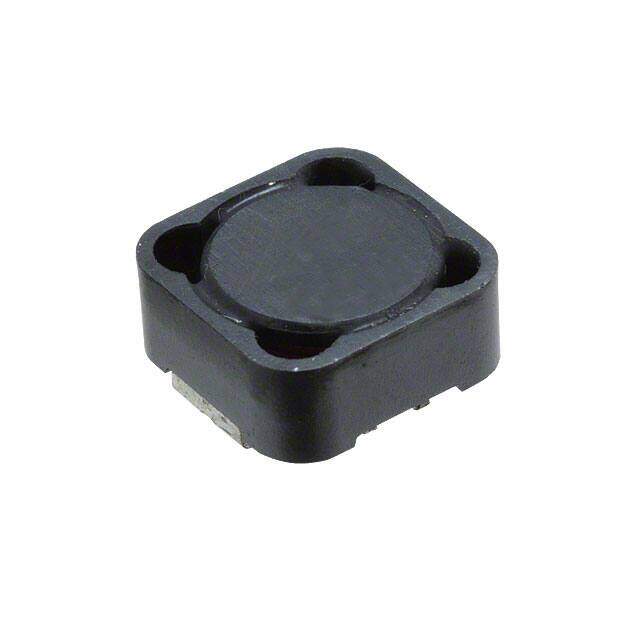

P1170.273NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P1170NL Nonstandard 0.482Lx0.482W 12.24mmx12.24mm 27muH
PDF
/
Inventory: 6642
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.236 6.00mm
Height 5.9944mm
Technical
DC Current 2.7A
Case/Size Code 4848
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 12MHz
Max DC Current 2.7A
DC Resistance (DCR) 51mOhm Max
Test Frequency 100kHz
Inductance 27μH
Military Standard Not
Current Rating 2.7A
Depth 12.24mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.482Lx0.482W 12.24mmx12.24mm
Series P1170NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~130°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
