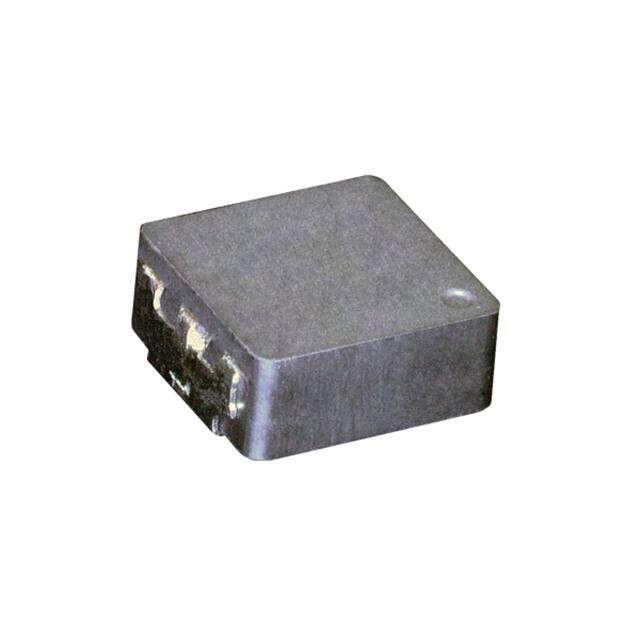

ETQ-P4M100KVK
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCC-M0840M 2-SMD J-Lead 0.335Lx0.315W 8.50mmx8.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.7304
≥100 USD $0.663872
≥500 USD $0.624096
≥1000 USD $0.51788
≥3000 USD $0.478051
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2016
Series PCC-M0840M
Size / Dimension 0.335Lx0.315W 8.50mmx8.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 5.2A
Shielding Shielded
Inductance 10μH
DC Resistance (DCR) 45.76mOhm Max
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 9.1A
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
