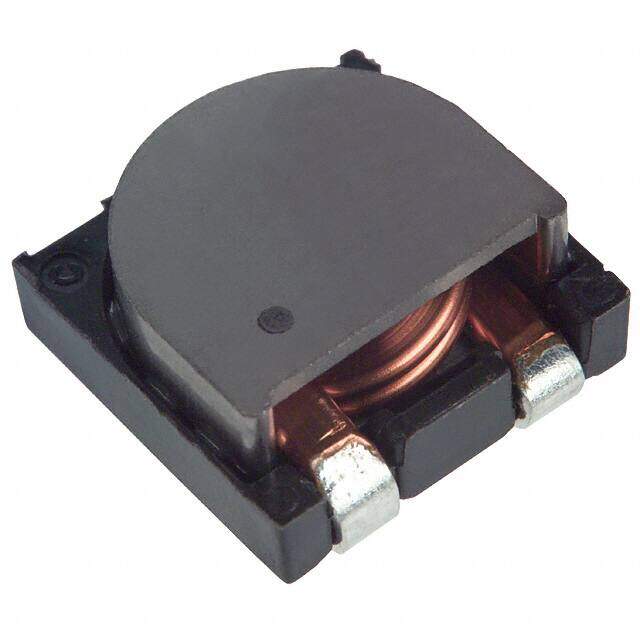

ETQ-P1H1R0BFA
RoHS
/
Package Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCC-D126H (NX3) Nonstandard 4Lead 0.512Lx0.508W 13.00mmx12.90mm 1muH
PDF
/
Buying Options
Total Price: USD $3.03
Unit Price: USD $3.0272
≥1 USD $3.0272
≥10 USD $1.8832
≥100 USD $1.550912
≥500 USD $1.329328
≥1000 USD $1.246256
Inventory: 160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard, 4 Lead
Material - Core Ferrite
Technical
Packaging Tape & Reel (TR)
Published 2011
Series PCC-D126H (NX3)
Size / Dimension 0.512Lx0.508W 13.00mmx12.90mm
Tolerance ±20%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Shielded
Depth 13.4mm
Current Rating 19A
Military Standard Not
Inductance 1μH
Test Frequency 100kHz
DC Resistance (DCR) 1.56mOhm Max
Current 1.6A
Max DC Current 19A
DC Current 19A
Dimensions
Height 6mm
Height Seated (Max) 0.236 6.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
