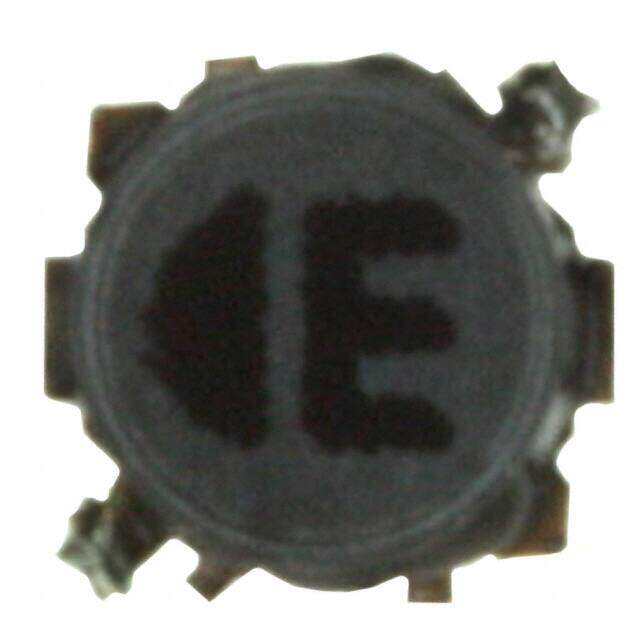

ELL-VGG3R3N  image
Favorite
ELL-VGG3R3N  image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $10.75
Unit Price: USD $10.74735
≥1 USD $10.74735
≥10 USD $8.8179
≥100 USD $8.5424
≥500 USD $8.2669
≥1000 USD $7.9914
Inventory: 1110
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Core Material Composite, Metal

Technical

Packaging Tape & Reel (TR)
Published 2008
Series G
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 130mOhm
Terminal Finish Tin (Sn)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 3.2mm
Current Rating 1.35A
Military Standard Not
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 130mOhm
Current 1.2A
Max DC Current 1.35A
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Tolerance 30%
DC Current 1.1A
RMS Current (Irms) 1.1A
Series Resistance 130mOhm
Self Resonant Frequency 100kHz

Dimensions

Height 1.5mm
Height Seated (Max) 0.059 1.50mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
