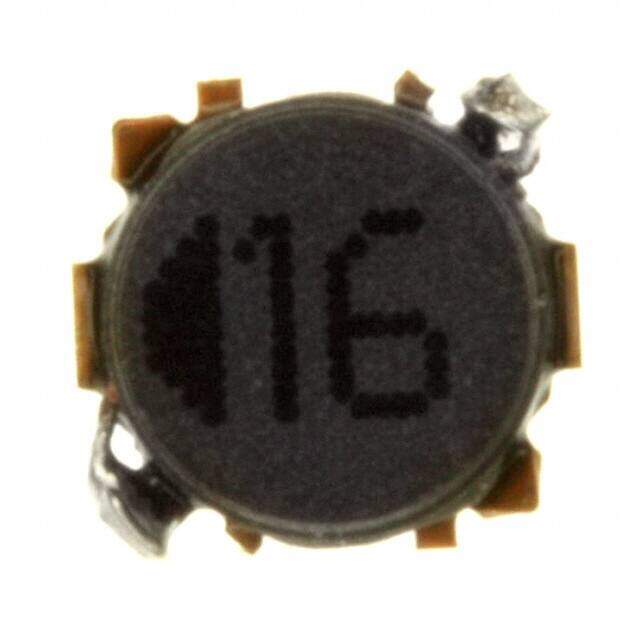

ELL-4LG3R3NA
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
G Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 3.3muH
PDF
/
Inventory: 4850
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.071 1.80mm
Height 1.8mm
Technical
Self Resonant Frequency 100kHz
RMS Current (Irms) 1.45A
DC Current 1.45A
Inductance Tolerance 30%
Case/Size Code 1515
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.45A
Current 220mA
DC Resistance (DCR) 72mOhm
Test Frequency 100kHz
Inductance 3.3μH
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Military Standard Not
Current Rating 1.3A
Depth 4mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Resistance 72Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Series G
Packaging Tape & Reel (TR)
Physical
Core Material Ferrite
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 10 Weeks
