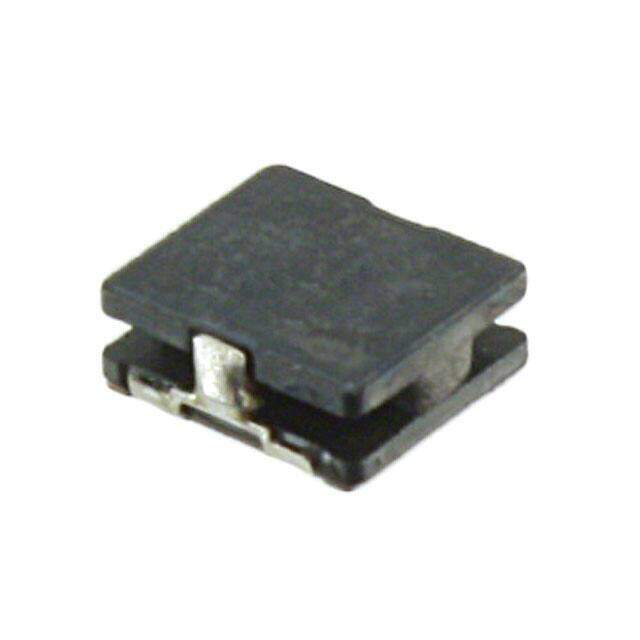

ELL-5PR1R0N
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
R Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 1muH
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 1.8542mm
Technical
RMS Current (Irms) 3A
Inductance Tolerance 30%
Current - Saturation 4.5A
Max DC Current 3A
Current 2.85A
DC Resistance (DCR) 21mOhm
Test Frequency 100kHz
Inductance 1μH
Current Rating 3A
Depth 5.2mm
Shielding Shielded
HTS Code 8504.50.80.00
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±30%
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Series R
Published 2011
Packaging Tape & Reel (TR)
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
