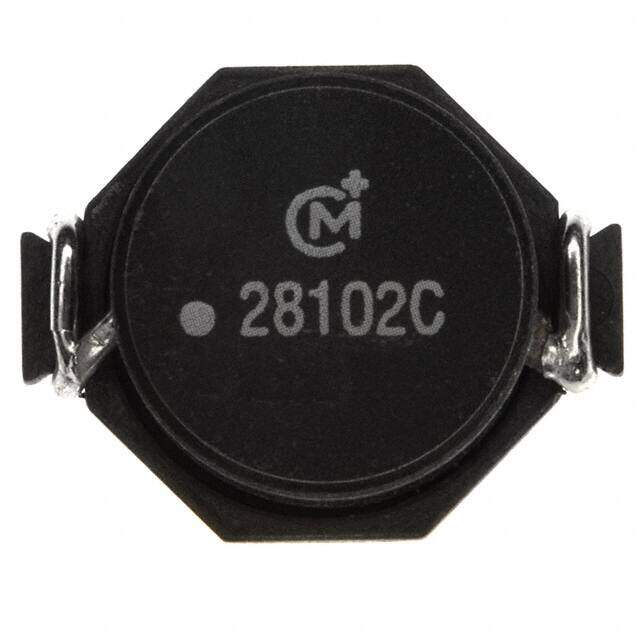

28102C
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2800 Nonstandard 0.728Lx0.598W 18.50mmx15.20mm 1muH
PDF
/
Inventory: 4516
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series 2800
Size / Dimension 0.728Lx0.598W 18.50mmx15.20mm
Tolerance 10%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 15.2mm
Current Rating 15.5A
Inductance 1μH
Test Frequency 1MHz
DC Resistance (DCR) 2.6mOhm Max
Max DC Current 15.5A
Frequency - Self Resonant 104MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 45.6 @ 1MHz
Q Factor 45.6
Dimensions
Height 7.6mm
Height Seated (Max) 0.299 7.60mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
