ELJ-NCR56JF image
Favorite
ELJ-NCR56JF image
Favorite
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors

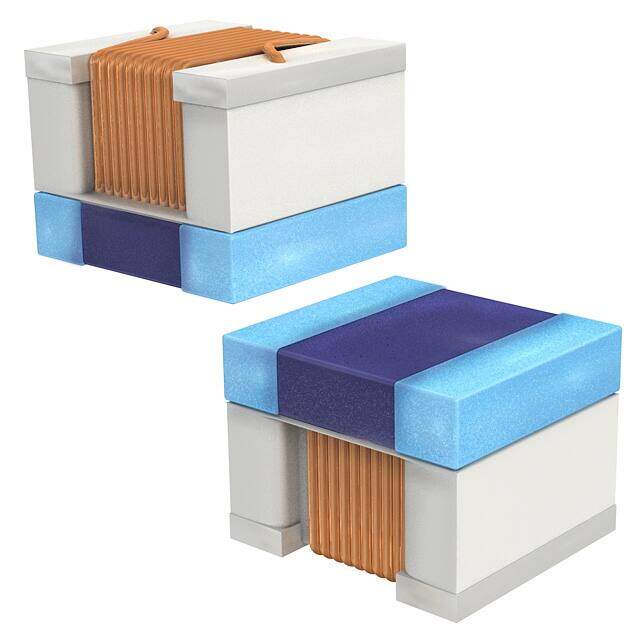

Description NC 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 560nH
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.243854
≥1 USD $0.243854
≥10 USD $0.230056
≥100 USD $0.217035
≥500 USD $0.204751
≥1000 USD $0.193154
Inventory: 1274
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.071 1.80mm
Height 1.6mm

Technical

DC Current 120mA
Inductance Tolerance 5%
Q Factor 10
Quality Factor-Min (at L-nom) 10
Q @ Freq 10 @ 25.2MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 145MHz
Max DC Current 120mA
Current 75mA
DC Resistance (DCR) 1.7Ohm Max
Test Frequency 25.2MHz
Inductance 560nH
Lead Pitch 1.5mm
Case Code (Imperial) 1008
Case Code (Metric) 2520
Military Standard Not
Current Rating 120mA
Construction Chip
Depth 2.2mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Tolerance ±5%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series NC
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Non-Magnetic
Number of Pins 2
Terminal Shape J BEND
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
