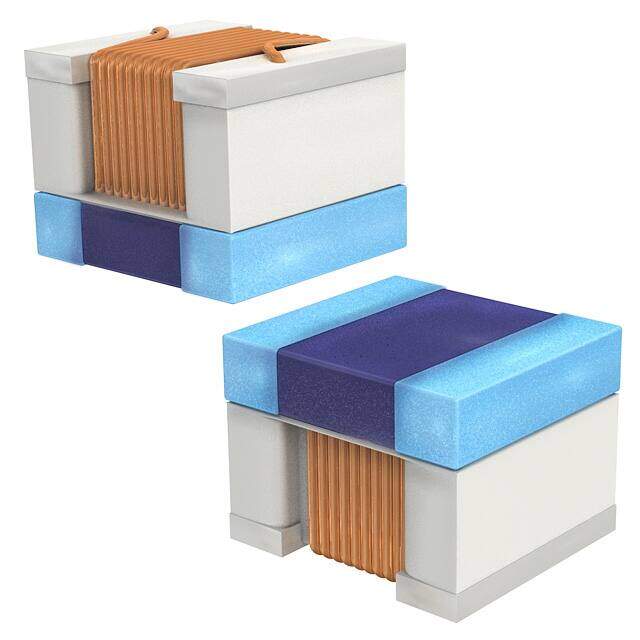

LQW2UASR56F0CL image
Favorite
LQW2UASR56F0CL image
Favorite

LQW2UASR56F0CL

Murata Electronics
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description LQW2 1008 (2520Metric) 0.103Lx0.096W 2.62mmx2.45mm 560nH
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.37224
≥100 USD $0.34144
≥500 USD $0.310464
≥1000 USD $0.27632
≥3000 USD $0.260762
Inventory: 1169
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.080 2.03mm

Technical

Special Feature Q MEASURED AT 100 MHZ
Rated Current-Max 0.4A
Inductance Frequency - Test 25MHz
Quality Factor-Min (at L-nom) 45
Q @ Freq 45 @ 100MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 415MHz
DC Resistance (DCR) 1.33Ohm Max
Test Frequency 25MHz
Inductance 560nH
Number of Functions 1
Shielding Unshielded
Current Rating (Amps) 400mA
Type Wirewound
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±1%
Size / Dimension 0.103Lx0.096W 2.62mmx2.45mm
Series LQW2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Non-Magnetic
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
