ELC11D470F
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description

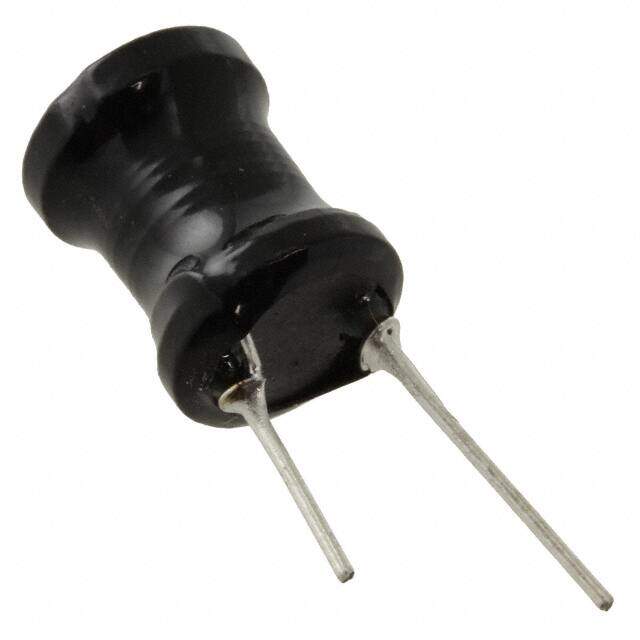

ELC11D Radial Vertical Cylinder 0.453Dia 11.50mm 47muH
PDF
/
Inventory: 5755
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.547 13.90mm
Height 13.9mm
Diameter 11.5mm
Technical
Self Resonant Frequency 10kHz
Series Resistance 63mOhm
RMS Current (Irms) 2.3A
DC Current 2.3A
Inductance Tolerance 10%
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 2.3A
DC Resistance (DCR) 63mOhm
Test Frequency 10kHz
Inductance 47μH
Operating Temperature (Max) 105°C
Lead Pitch 5mm
Military Standard Not
Current Rating 2.3A
Construction Cylindrical
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 63mOhm
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.453Dia 11.50mm
Series ELC11D
Published 2006
Packaging Bulk
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Radial, Through Hole
Alternative Model
