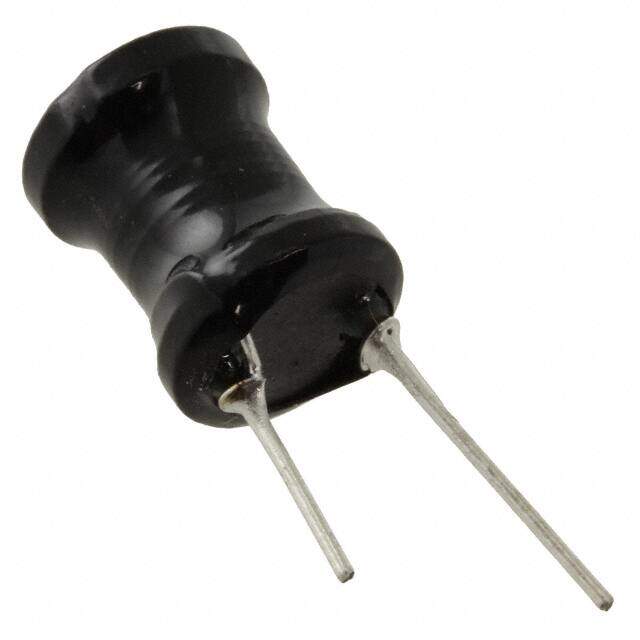

AIUR-06-470K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-06 Radial Vertical Cylinder 0.500Dia 12.70mm 47muH
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78232
≥100 USD $0.71104
≥500 USD $0.668448
≥1000 USD $0.554576
≥3000 USD $0.511958
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AIUR-06
Size / Dimension 0.500Dia 12.70mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.2A
Shielding Unshielded
Current Rating 3.2A
Lead Pitch 7.37mm
Lead Diameter 810 μm
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 63mOhm Max
Max DC Current 4.1A
Lead/Base Style Radial
Inductance Frequency - Test 1kHz
Current - Saturation 4.1A
Dimensions
Height 18.034mm
Height Seated (Max) 0.710 18.03mm
Length 18mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
