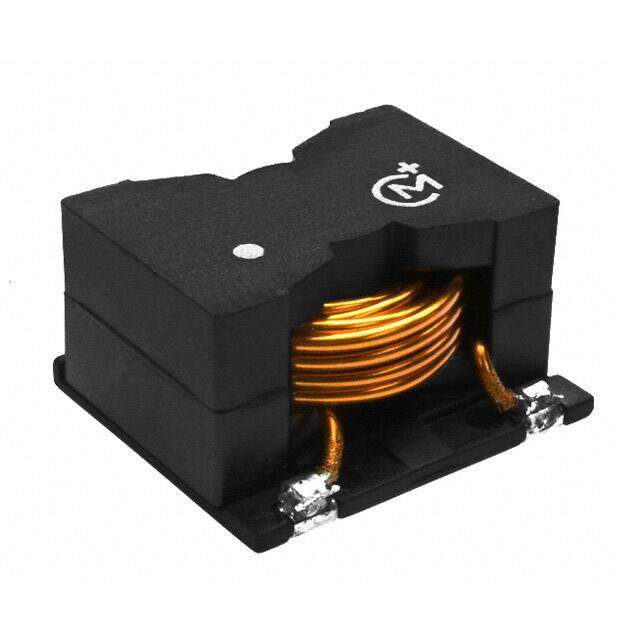

60A193C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
6000A Nonstandard 0.866Lx0.748W 22.00mmx19.00mm 19.4muH
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.72477
≥1 USD $1.72477
≥10 USD $1.627144
≥100 USD $1.535041
≥500 USD $1.448142
≥1000 USD $1.366183
Inventory: 1172
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 3
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series 6000A
Size / Dimension 0.866Lx0.748W 22.00mmx19.00mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Pure Tin (Sn)
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Depth 19mm
Current Rating 8.5A
Military Standard Not
Inductance 19.4μH
Test Frequency 100kHz
DC Resistance (DCR) 11mOhm Max
Max DC Current 8.5A
Frequency - Self Resonant 15MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 12A
Case/Size Code 8775
Inductance Tolerance 10%
DC Current 8.5A
RMS Current (Irms) 8.5A
Dimensions
Height 12mm
Height Seated (Max) 0.472 12.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
