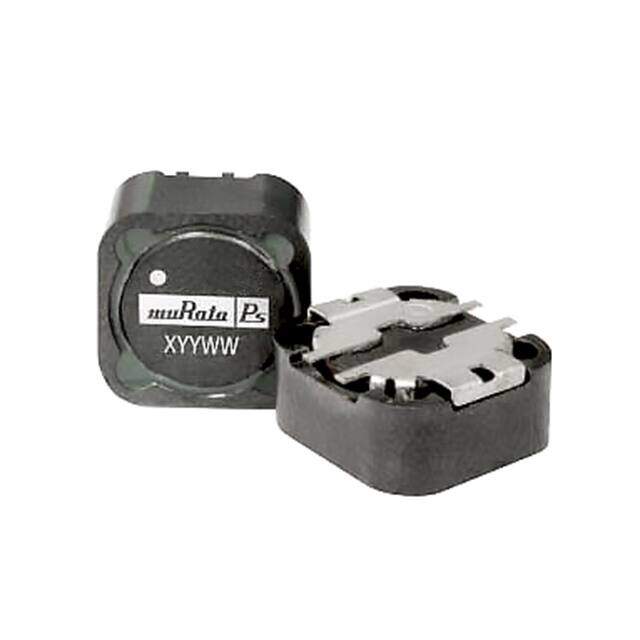

48101SC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4800S Nonstandard 4Lead 0.480Lx0.480W 12.20mmx12.20mm 100muH
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.948104
≥1 USD $0.948104
≥10 USD $0.894437
≥100 USD $0.8438
≥500 USD $0.796037
≥1000 USD $0.750984
Inventory: 991
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard, 4 Lead
Terminal Shape ONE SURFACE
Number of Pins 48100
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 4800S
Size / Dimension 0.480Lx0.480W 12.20mmx12.20mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 12.5mm
Current Rating 1.6A
Military Standard Not
Inductance 100μH
Test Frequency 10kHz
DC Resistance (DCR) 200mOhm Max
Max DC Current 1.6A
Frequency - Self Resonant 7MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 800kHz
Q Factor 20
Inductance Tolerance 20%
DC Current 1.6A
RMS Current (Irms) 1.6A
Special Feature Q MEASURED AT 0.8 MHZ
Dimensions
Height 6mm
Height Seated (Max) 0.236 6.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
